 Surface Mount Assembly
SMT board.

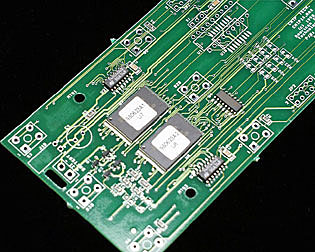

SMT board — This subassembly shows surface mount assembly of standard, as well as, fine pitch components. The remaining assembly will be completed by the customer.

Our precision vision system allow us to place fine pitch components as fine as 15 mil. To aid in placement of fine pitch components we utilize local fiducials.

Lead free required? Just specify lead free or RoHS and we’ll manufacture compliant.

Design Tip:
When designing a SMT board with 15 or 20 mil components, add a local fidicual (60 mil solid pad) in the center of the foot print.

That way the vision system will place the part accurately for each board of the panel rather than use a calculated location from the panel fiducials.
